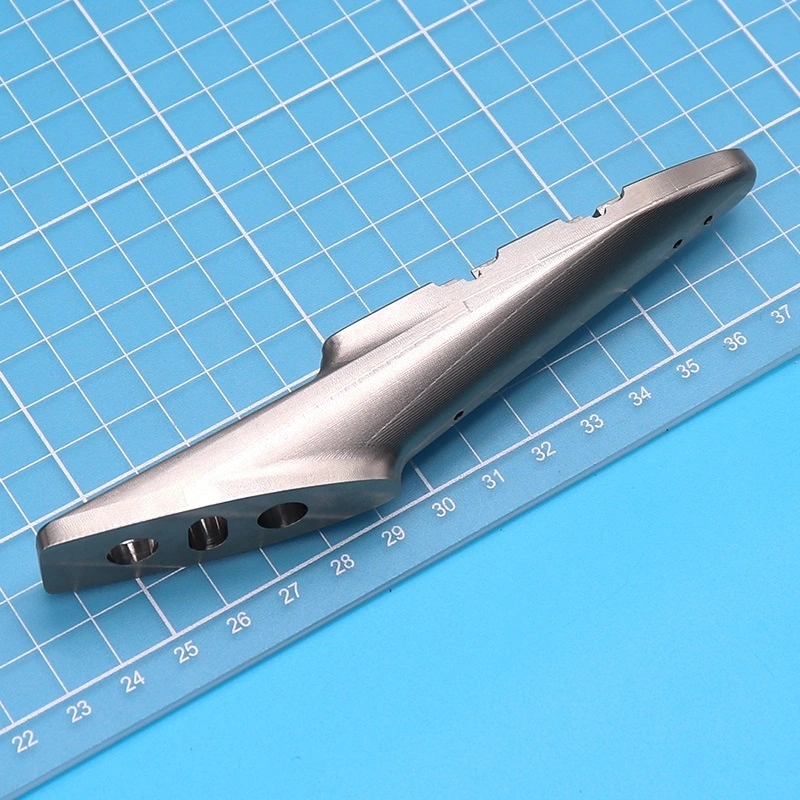

Grade 5 Titanium CNC machining service 1
Grade 5 Titanium CNC machining service 2
Grade 5 Titanium CNC machining service 3
Grade 5 Titanium CNC machining service 1
Grade 5 Titanium CNC machining service 2
Grade 5 Titanium CNC machining service 3

Grade 5 Titanium CNC machining service

Our Grade 5 Titanium CNC machining service offers precision manufacturing for complex components used in various industries. Grade 5 Titanium (Ti-6Al-4V) is known for its high strength-to-weight ratio, corrosion resistance, and ability to withstand extreme conditions. It is commonly utilized in aerospace, automotive, and medical sectors for critical parts.



We specialize in producing high-quality Grade 5 Titanium parts that meet tight tolerances and specifications. Our machining process ensures consistency in each batch, minimizing material waste while maintaining dimensional accuracy. The components are inspected using precise measurement instruments to guarantee compliance with your requirements.



For industries requiring durable and reliable titanium components, our Grade 5 Titanium CNC machining service provides a solution that balances performance and quality.

    oops...!

    no product data.

    Go to homepage

    Characteristic

    Grade 5 Titanium (Ti-6Al-4V) is a widely used material in CNC machining due to its excellent balance of strength, lightweight properties, and corrosion resistance. Below is a detailed breakdown of its key characteristics, including numerical values, advantages, and disadvantages.



    1. Chemical Composition:

       - Titanium: 88.74%

       - Aluminum: 6.0%

       - Vanadium: 4.0%

       - Oxygen: 0.2%

       - Iron: 0.25%

       - Carbon: 0.08%

       - Nitrogen: 0.05%

       - Hydrogen: 0.015%


    Grade 5 Titanium CNC machining service (4)

    2. Mechanical Properties:

       - Tensile Strength: 950 MPa (minimum)

       - Yield Strength: 880 MPa (minimum)

       - Elongation: 10% (minimum)

       - Modulus of Elasticity: 110 GPa

       - Hardness: 35 HRC (Rockwell Hardness)


    3. Density:

       - 4.43 g/cm³ (approximately 60% of steel's density), making it suitable for applications where weight reduction is critical.


    4. Thermal Properties:

       - Melting Point: 1660°C

       - Thermal Conductivity: 6.7 W/m·K

       - Coefficient of Thermal Expansion: 8.6 µm/m·K


    5. Corrosion Resistance:

       - Grade 5 Titanium offers superior corrosion resistance in environments containing chloride ions and marine conditions due to its stable oxide layer.



     Advantages:

    - High Strength-to-Weight Ratio:

    Grade 5 Titanium combines high strength with low density, making it an ideal choice for components where weight needs to be minimized without sacrificing mechanical performance.


    - Biocompatibility:

    Its biocompatible nature allows for safe use in medical implants and devices, ensuring compatibility with human tissues.


    - Temperature Stability:

    Withstanding temperatures up to 400°C without losing mechanical properties, Grade 5 Titanium is suitable for high-temperature applications.


    - Corrosion Resistance:

    The material’s resistance to various types of corrosion, including seawater and acidic environments, makes it reliable for marine and chemical processing applications.



     Disadvantages:

    - Machining Difficulty:

    Due to its high strength and low thermal conductivity, Grade 5 Titanium is challenging to machine. Cutting tools may wear out faster, requiring precise CNC parameters and specialized tooling.


    - Cost:

    The production and machining of Grade 5 Titanium components are generally more expensive compared to other metals due to the complex extraction process and tooling requirements.


    - Limited Use in High-Stress Applications:

    Though strong, it is not always suitable for extremely high-stress applications where more robust alloys might be necessary.

    Application

    ◎   1. Automotive Industry


    In the automotive sector, Grade 5 Titanium (Ti-6Al-4V) is favored for its high strength-to-weight ratio, corrosion resistance, and mechanical properties, making it ideal for manufacturing small, precise components. These parts are primarily used in high-performance and racing applications to enhance overall vehicle performance while reducing weight.


    Grade 5 Titanium CNC machining service (3)
    - Valve Components:

    Titanium is used to manufacture intake and exhaust valves for high-speed engines. It withstands high temperatures while maintaining strength, reducing engine load and improving fuel efficiency.


    - Connecting Rods:

    In high-performance engines, titanium alloy connecting rods reduce the weight of the engine components while maintaining durability, minimizing engine vibrations, and enhancing performance.


    - Exhaust System Components:

    Small titanium exhaust pipes and manifolds can handle high-temperature environments, decreasing the exhaust system weight and lowering the vehicle's center of gravity.


    - Turbocharger Rotors:

    These compact and precise parts leverage titanium’s strength and low density to achieve rapid acceleration and high efficiency in turbocharger assemblies.




    ◎   Mechanical and Engineering Industry

    In the mechanical and engineering fields, Grade 5 Titanium is used for high-strength, high-precision components that must remain stable in various complex environments. Titanium alloy small mechanical parts are known for their long-term reliability and performance under challenging conditions.


    - Bearing Housings:

    Titanium bearing housings are critical components in precision machinery, providing high stability and reducing wear over long operating periods.


    - Hydraulic Valve Components:

    Used in high-pressure hydraulic systems, titanium valve bodies and spools resist deformation in high-pressure environments.


    - Transmission Gears and Shafts:

    Small titanium alloy gears and transmission shafts can handle high-load power transmission while improving mechanical efficiency and reducing overall weight.


    - Rotating Components:

    Such as mechanical seals or rotary sleeves, titanium is suitable for high-speed operation, ensuring balance and precision in rotating assemblies.




    ◎   Medical Industry

    In the medical device industry, Grade 5 Titanium is widely used due to its biocompatibility, safety, and excellent mechanical properties. It is commonly utilized for manufacturing small and precise implants and surgical instruments.

    Grade 5 Titanium CNC machining service 6

    - Bone Screws and Plates:

    Used in fracture fixation, these titanium components can integrate firmly with bone material, ensuring structural stability without triggering adverse biological reactions.


    - Dental Implants:

    Small titanium dental posts or bridges replace missing tooth roots, providing long-term stability and durability for dental restoration.


    - Minimally Invasive Surgical Instruments:

    Titanium-made surgical forceps, scissors, or probes are durable and corrosion-resistant, maintaining performance during lengthy surgical procedures.


    - Spinal Fixation Devices:

    Small titanium spinal screws and connecting rods are used to correct spinal deformities or stabilize vertebral structures during post-surgery recovery.

    FAQ

    1
    Which kind of file format you can read?
    A.Dwg, pdf, step, step, igs, images or text format is acceptable.
    2
    Are you a trading company or manufacturer?
    A.We are a manufacturer.
    3
    When was your company founded?
    A.Our company was founded in 2005.
    4
    How long can I get a quote after sending drawing?
    A.Usually within 12 hours for common parts. If complex parts, Please send 3D file, We will reply to you within 24 hours.
    5
    Can you provide a sample? Is it free or extra?
    A.Yes, We can. Just need some sample costs.
